AST6324

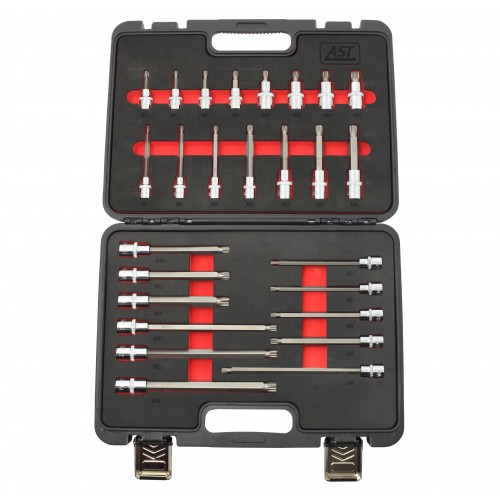

XZN Spline Socket Bit Set 26pc - 3/8" and 1/2" Sq Drive - Mercedes Benz - VAG
AST6324 XZN Spline Socket Bit Set contains a variety of socket sizes and lengths and is designed to cover a number of common automotive applications.
- Commonly referred to as 'spline bolts', XZN headed bolts are seen on models supplied by German marques such as VAG group but are commonly used across the automotive industry
- Contains a combination of 3/8" and 1/2" sq. drive sockets ranging from M5 to M16
- Manufactured from Cr-V with S2 hardened steel bits providing reliability and durability
- M5 - M9 socket bits feature a 3/8" sq. drive
- M10 - M16 socket bits feature a 1/2" sq. drive
AST6324 comprises:
3/8" Sq. Drive 1/2" Sq. Drive
Length 55mm: M5, M6, M8, M9 Length 55mm: M10, M12, M14, M16
Length 100mm: M5, M6, M9, M9 Length 100mm: M10, M12, M14
Length 140mm: M5, M6, M9, M9 Length 140mm: M10, M12, M14
Length 200mm: M8 Length 200mm: M10, M12, M14
Individual Sockets within the Set:
| AST6324-05055 | - | 55mm - M5 |
| AST6324-06055 | - | 55mm - M6 |
| AST6324-08055 | - | 55mm - M8 |
| AST6324-09055 | - | 55mm - M9 |
| AST6324-10055 | - | 55mm - M10 |
| AST6324-12055 | - | 55mm - M12 |
| AST6324-14055 | - | 55mm - M14 |
| AST6324-16055 | - | 55mm - M16 |
| AST6324-05100 | - | 100mm - M5 |
| AST6324-06100 | - | 100mm - M6 |
| AST6324-08100 | - | 100mm - M8 |
| AST6324-09100 | - | 100mm - M9 |
| AST6324-10100 | - | 100mm - M10 |
| AST6324-12100 | - | 100mm - M12 |
| AST6324-14100 | - | 100mm - M14 |
| AST6324-05140 | - | 140mm - M5 |
| AST6324-06140 | - | 140mm - M6 |
| AST6324-08140 | - | 140mm - M8 |
| AST6324-09140 | - | 140mm - M9 |
| AST6324-10140 | - | 140mm - M10 |
| AST6324-12140 | - | 140mm - M12 |
| AST6324-14140 | - | 140mm - M14 |
| AST6324-08200 | - | 200mm - M8 |
| AST6324-10200 | - | 200mm - M10 |
| AST6324-12200 | - | 200mm - M12 |
| AST6324-14200 | - | 200mm - M14 |
